Home > Filters > 14CGF - Color Glass Filters
|
|
 |
|
 |
|
|
|
 |
|
Color glass filter provides an economical filter for many various applications |
|
|
|

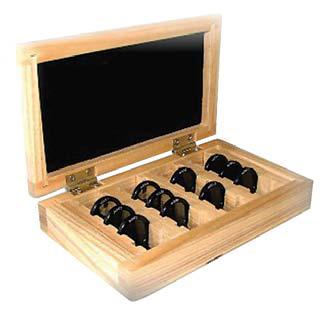

For your convenience, we have selected 45 pcs of the color and neutral glass filters for various applications in the laboratory! Filters are assembled in safe and compact wooden box |
|
|
|
Filters included in 14CGF |
|
Standa provides color glasss filrers for laser pulse attenuation,
filtering, etc.

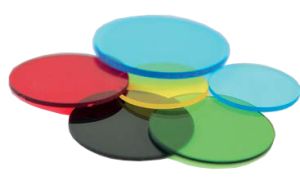

Due to its selective absorption in visible wavelength range,
color glass filter will exhibit various color depending the glass
type. Color glass filter provides an economical filter for various
applications.
Optical glass filters are widely used in safety glasses, industrial
measurement, environment protection and many others.
Standard Specifications
| Material | Schott glass or equivalent |
| Diameter Tolerance | +0.0, -0.2 mm |
| Clear Aperture | 90% |
| Surface Quality | 60-40 scratch & dig |
| Surface Flatness | λ @ 632.8 nm |
| Parallelism | <3 arcmin |
| Uncoated, Unmounted |
Color Glass Filters
| Material | Ordering Code |
| Ø12.7x3 mm | Ø25.4x3 mm | 50.8x50.8x3 mm |
| GG Series: Yellow glass |
| GG10 | 14CGF-GG10-1 | 14CGF-GG10-2 | 14CGF-GG10-3 |
| GG375 | 14CGF-GG375-1 | 14CGF-GG375-2 | 14CGF-GG375-3 |
| GG400 | 14CGF-GG400-1 | 14CGF-GG400-2 | 14CGF-GG400-3 |
| GG420 | 14CGF-GG420-1 | 14CGF-GG420-2 | 14CGF-GG420-3 |
| GG455 | 14CGF-GG455-1 | 14CGF-GG455-2 | 14CGF-GG455-3 |
| GG475 | 14CGF-GG475-1 | 14CGF-GG475-2 | 14CGF-GG475-3 |
| GG495 | 14CGF-GG495-1 | 14CGF-GG495-2 | 14CGF-GG495-3 |
| OG Series: Orange glass |
| OG515 | 14CGF-OG515-1 | 14CGF-OG515-2 | 14CGF-OG515-3 |
| OG530 | 14CGF-OG530-1 | 14CGF-OG530-2 | 14CGF-OG530-3 |
| OG550 | 14CGF-OG550-1 | 14CGF-OG550-2 | 14CGF-OG550-3 |
| OG570 | 14CGF-OG570-1 | 14CGF-OG570-2 | 14CGF-OG570-3 |
| OG590 | 14CGF-OG590-1 | 14CGF-OG590-2 | 14CGF-OG590-3 |
| RG Series: Red and black glass, IR transmitting |
| RG6 | 14CGF-RG6-1 | 14CGF-RG6-2 | 14CGF-RG6-3 |
| RG7 | 14CGF-RG7-1 | 14CGF-RG7-2 | 14CGF-RG7-3 |
| RG610 | 14CGF-RG610-1 | 14CGF-RG610-2 | 14CGF-RG610-3 |
| RG630 | 14CGF-RG630-1 | 14CGF-RG630-2 | 14CGF-RG630-3 |
| RG645 | 14CGF-RG645-1 | 14CGF-RG645-2 | 14CGF-RG645-3 |
| RG665 | 14CGF-RG665-1 | 14CGF-RG665-2 | 14CGF-RG665-3 |
| RG695 | 14CGF-RG695-1 | 14CGF-RG695-2 | 14CGF-RG695-3 |
| RG715 | 14CGF-RG715-1 | 14CGF-RG715-2 | 14CGF-RG715-3 |
| RG780 | 14CGF-RG780-1 | 14CGF-RG780-2 | 14CGF-RG780-3 |
| RG830 | 14CGF-RG830-1 | 14CGF-RG830-2 | 14CGF-RG830-3 |
| RG850 | 14CGF-RG850-1 | 14CGF-RG850-2 | 14CGF-RG850-3 |
| UG Series: Black blue glasses, ultraviolet transmitting |
| UG1 | 14CGF-UG1-1 | 14CGF-UG1-2 | 14CGF-UG1-3 |
| UG5 | 14CGF-UG5-1 | 14CGF-UG5-2 | 14CGF-UG5-3 |
| UG11 | 14CGF-UG11-1 | 14CGF-UG11-2 | 14CGF-UG11-3 |
| KG Series: Colorless glass with high transmission in the visible and absorption in the IR range |
| KG1 | 14CGF-KG1-1 | 14CGF-KG1-2 | 14CGF-KG1-3 |
| KG2 | 14CGF-KG2-1 | 14CGF-KG2-2 | 14CGF-KG2-3 |
| KG3 | 14CGF-KG3-1 | 14CGF-KG3-2 | 14CGF-KG3-3 |
| VG Series: Green glass |
| VG5 | 14CGF-VG5-1 | 14CGF-VG5-2 | 14CGF-VG5-3 |
| VG8 | 14CGF-VG8-1 | 14CGF-VG8-2 | 14CGF-VG8-3 |
| VG10 | 14CGF-VG10-1 | 14CGF-VG10-2 | 14CGF-VG10-3 |
| BG Series: Blue, blue-green and multi-band glass |
| BG3 | 14CGF-BG3-1 | 14CGF-BG3-2 | 14CGF-BG3-3 |
| BG7 | 14CGF-BG7-1 | 14CGF-BG7-2 | 14CGF-BG7-3 |
| BG12 | 14CGF-BG12-1 | 14CGF-BG12-2 | 14CGF-BG12-3 |
| BG20 | 14CGF-BG20-1 | 14CGF-BG20-2 | 14CGF-BG20-3 |
| BG25 | 14CGF-BG25-1 | 14CGF-BG25-2 | 14CGF-BG25-3 |
| BG38 | 14CGF-BG38-1 | 14CGF-BG38-2 | 14CGF-BG38-3 |
| Color and neutral filter set consisting of 45 mounted filters (Ø25.4 mm, CA18 mm) |
| Universal Filter Set (45 pcs) | 14UFS-1-S45 |

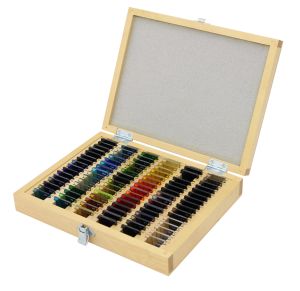

| Color Glass Filter Set consisting of 95 unmounted filters (40x40 mm) |
| Color Glass Filter Set (95 pcs) | 14CGF |
| Related products |

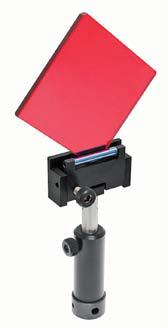

4PH132-3 Universal Plate Holder |
