High Extinction Ratio |
|
|
|
Wide Wavelength Range |
|
|
|
High UV Transmission |
|
|
|
Large Field Angle |
|

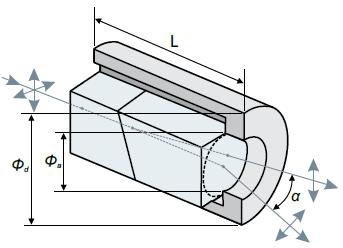

The device produces two parallel orthogonally polarized beams
from unpolarized input.
The displacement between ordinary and extraordinary beams
can be found by approximate formula d = 0.1 x L
Related Product
10APF3-1CVAF
Variable Attenuator for Femtosecond Laser Pulses |
|
Standard Specifications
| Material | Quartz or YVO4 |
| Wavelength Range | Quartz: 200-2300 nm
YVO4: 500-4000 nm |
| Extinction Ratio | Quartz: <5x10-4
YVO4: <5x10-5 |
| Surface Quality | 20-10 scratch and dig |
| Beam Deviation | < 3 arcmin |
| Wavefront Distortion | λ/4 @ 632.8 nm |
| Damage Threshold | >100 MW/cm2 |
| Coating | Single Layer MgF2 |
| Mount | Black Anodized Aluminum |
|
Quartz Rochon Polarizer
| Wavelength, nm | DExtinction ratio | Angular Field, deg | C.A. Øa, mm | O.D. Ød, mm | L ±0.1, mm | Ordering Code |
| 200-2300 | <5x10-5 | 1.0 @ 1064 nm | 8.0 | 25.4 | 24.0 | 14RHP-8-1 |
| 10.0 | 25.4 | 28.0 | 14RHP-10-1 |
| 15.0 | 30.0 | 38.0 | 14RHP-15-1 |
| 20.0 | 38.0 | 48.0 | 14RHP-20-1 |
YVO4 Rochon Polarizer
| Wavelength, nm | DExtinction ratio | Angular Field, deg | C.A. Øa, mm | O.D. Ød, mm | L ±0.1, mm | Ordering Code |
| 500-4000 | <5x10-6 | 10.0 @ 1550 nm | 8.0 | 25.4 | 17.0 | 14RHP-8-2 |
| 10.0 | 25.4 | 19.0 | 14RHP-10-2 |
| 15.0 | 30.0 | 23.0 | 14RHP-15-2 |
| 20.0 | 38.0 | 25.0 | 14RHP-20-2 |
