Working as internal or external reflectors or as retro-reflectors |
|
|
|
Various dielectric coatings can be deposited upon request |
|
Right-angle prisms - retroreflectors are often preferable to an
inclined mirror in applications involving severe acoustic or
inertial loads, because they are easier to mount, and deform
much less than mirror in response to external mechanical stress.
As long as acceptance angle limitations for TIR from the roof
faces are not exceeded, the right angle prisms are working as a
retro reflector, turning beams back to the original direction.
Standard Specifications
| Material | BK7 |
| Dimension Tolerances | +0.0, -0.2 mm |
| Surface Quality | 40-20 scratch & dig |
| Clear Aperture | 80% of the face size |
| Flatness | λ/4 @ 632.8 nm |
| 90° Angle Tolerance | ±2 arcmin (general type) |
| Coatings | None. Please refer to the Coatings Section |
| |

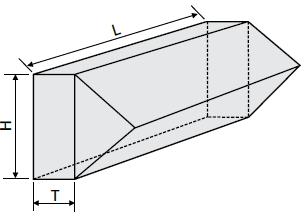

BK7 Right-Angle Prisms - Retroreflectors
| Dimensions L x H x T, mm | Ordering Code |
| 16 x 10 x 5 | 14RPR-1-1 (available by request) |
| 18 x 8 x 4 | 14RPR-2-1 |
| 22 x 16 x 8 | 14RPR-3-1 (available by request) |
| 25 x 10 x 4 | 14RPR-4-1 (available by request) |
| 35 x 10 x 5 | 14RPR-5-1 |
|
Ordering
|
 |
